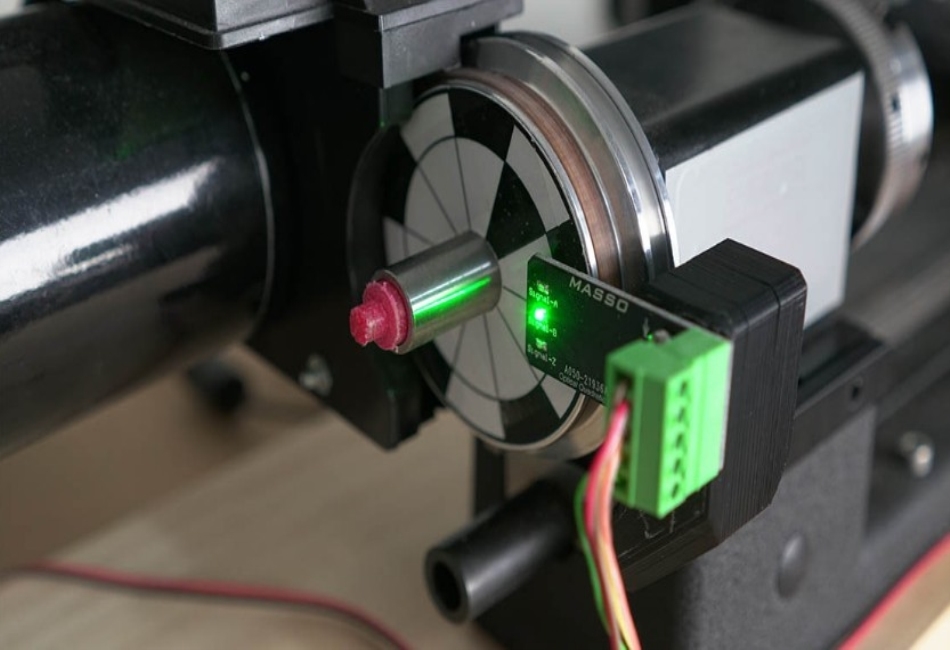

What is an Optical Encoder?

The vital link between the digital world of control and measurement and the real world of motion is provided by optical encoders. These highly developed sensors are excellent at translating linear or rotary motion into electrical impulses, which allows them to provide accurate location, velocity, and direction data. Precise motion tracking is critical to many industrial, scientific, and technical applications, and this capacity supports them.

Optical encoders allow systems to operate with extraordinary precision and repeatability in various applications, from the intricate automation of industrial processes to the precise positioning of surgical instruments. They enable machines to perform complex movements in robotics, and they are essential to power steering and anti-lock braking systems in the car industry.  Renewable energy installations leverage optical encoders for solar panel tracking, maximizing energy capture.

An extensive selection of optical encoders is available from Eltra, a top producer of motion control solutions, to satisfy the demanding needs of various sectors. Eltra is known for its excellent precision, resilience, and dependability and is dedicated to innovation and quality in its encoders. Providing solutions for multiple applications, their product offerings include rotary, absolute, and incremental encoders. Optical encoders from Eltra provide the vital feedback required for peak performance, whether in a high-speed industrial process or a precise scientific apparatus.

Fundamentals of Optical Encoders

Basic Components

At its core, an optical encoder is an elegant assembly of three primary components:

• Light Source: This is typically an LED emitting a focused light beam. The stability and intensity of the light source are critical for consistent performance.
• Coded Disc/Wheel: The heart of the encoder, this disc features a precise pattern of opaque and transparent segments. The pattern’s configuration dictates the encoder’s type and resolution.
• Photodetectors: These light-sensitive components, often photodiodes or phototransistors, generate electrical signals in response to incident light.

Working Principle

The working principle of an optical encoder hinges on the interaction between light and the coded disc.

• Transmission and Modulation of Light: A beam is directed toward the coded disc by the light source. The transparent portions of the disk enable light to go through, but the opaque segments block the light beam as it turns. In doing so, a modulated light pattern is produced that contains information on the angular position of the disc.
• Photodetection and Signal Generation: The photodetectors capture the modulated light pattern on the disc’s opposite side. Every change in light or dark conditions causes a shift in the photodetector’s output, which might result in a voltage level shift or pulse.
• Signal Interpretation: The resulting electrical signals are processed by decoding circuitry. In incremental encoders, the number of pulses corresponds to the angular displacement. In absolute encoders, the unique pattern of signals at any given moment represents a specific angular position. The frequency of these signals also provides information about the rotational speed.

The direction of rotation can be inferred by using two photodetectors slightly offset from each other. The phase relationship between the signals from these detectors indicates whether the disc is rotating clockwise or counterclockwise.

This fundamental principle, with variations in disc patterns and signal processing techniques, underpins the operation of all-optical encoders. It is a testament to the power of combining simple physical phenomena with sophisticated electronics to achieve precise motion control.

Types of Optical Encoders

Optical encoders are primarily categorized into two types:

Incremental Encoders

The pulses represent the relative position changes these encoders produce. Since each pulse represents a distinct angular displacement, the system can track movement starting from a reference point.

• Pros: Easy to use, reasonably priced, and appropriate for fast speeds.
• Cons: Only relative motion tracking is possible due to position data loss during power outages.

Absolute Encoders

Direct absolute position feedback is made possible by absolute encoders, which generate a distinct digital code for every angular position.

• Pros: Excellent resolution, accuracy, and retention of position data even during a power outage.
• Cons: It may be less speed-capable, costly, and complex.

The choice between incremental and absolute encoders depends on the application’s requirements. Factors such as cost, accuracy, resolution, speed, and the need for absolute position information all play a role in the decision-making process.

Key Considerations when Choosing an Optical Encoder

Selecting the appropriate optical encoder necessitates careful evaluation of several critical parameters:

Resolution

Resolution directly dictates the encoder’s ability to discern minute angular displacements. Expressed in pulses per revolution (PPR) for incremental encoders or bits for absolute encoders, it is crucial to align resolution with the application’s precision requirements. Higher resolution translates to finer position control but also increases complexity and cost.

Accuracy

Accuracy encompasses the encoder’s conformity to the true angular position. It is influenced by disc quality, alignment, and environmental conditions. High-accuracy encoders are essential for applications demanding stringent position fidelity.

Interface

The interface of the encoder establishes its communication protocol with the control system. Parallel, serial (RS-232, RS-422, SSI), and fieldbus protocols (CANopen, Profibus) are common choices. The requirements for data transmission and system compatibility determine the interface to use.

Environmental Factors

The performance and lifespan of the encoder are strongly influenced by its operating environment. Factors like vibration, shock, temperature, and humidity must be considered when choosing an encoder. Ruggedized encoders with improved sealing and protection are available for severe industrial conditions.

Cost

Cost is undeniably a factor but should be weighed against the encoder’s performance and reliability. A low-cost encoder may prove costly in the long run due to premature failure or inadequate performance. Investing in a high-quality encoder aligned with application needs ensures optimal system operation.

Thorough consideration of these factors empowers engineers to make informed decisions and choose the optimal optical encoder for their applications.

Applications of Optical Encoders

Optical encoders’ versatility and precision render them indispensable across various industries and applications.

Industrial Automation

In industrial automation, optical encoders are the backbone of motion control systems. They provide critical feedback on position, velocity, and direction, enabling precise control of motors, actuators, and robotic arms. Optical encoders ensure seamless operation and product quality, from conveyor belts and packaging machines to CNC machines and 3D printers.

Robotics

Optical encoders empower robots with spatial awareness and precise movement. By tracking joint angles and end-effector positions, encoders enable robots to navigate complex environments, perform intricate tasks, and collaborate safely with humans. The accuracy and reliability of optical encoders are paramount for achieving robotic agility and efficiency.

Medical Devices

In the medical field, optical encoders contribute to life-saving technologies. They are integral to diagnostic imaging equipment like CT scanners and MRI machines, where precise motion control is critical for image quality. Additionally, surgical robots rely on optical encoders for accurate instrument positioning and manipulation, enhancing surgical precision and patient outcomes.

Aerospace

The aerospace industry demands the utmost reliability and performance from its components. Optical encoders are crucial in flight control systems, navigation instruments, and engine control units. Accurate motion feedback and resistance to challenging environmental conditions are essential to guarantee secure and effective flight operations.

Consumer Electronics

Optical encoders have found their way into various consumer electronics, enhancing user experience and functionality. They are used in computer mice for tracking cursor movement, printers for precise paper positioning, and cameras for lens focus control. The compact size and affordability of optical encoders make them ideal for integration into consumer devices.

Other Applications

The applications of optical encoders extend beyond these major industries. They find use in renewable energy systems for tracking solar panel orientation, scientific instruments for precise measurements, and automotive applications for steering wheel angle sensing. The possibilities for utilizing optical encoders are vast and continually expanding as technology advances.

The pervasive presence of optical encoders in diverse fields underscores their significance in modern technology. Their ability to convert motion into digital information enables precise control, automation, and innovation across various applications.

Optical encoders serve as the critical interface between the physical dynamics of motion and the precision of digital control systems. The capability to transduce mechanical displacement into electrical signals, providing precise positional, velocity, and directional data, underpins widespread adoption across many industries. Their contribution to high-precision motion tracking has revolutionized fields ranging from industrial automation and robotics to aerospace and medical technology.

Optical encoders’ versatility, accuracy, and reliability have positioned them as an enabling technology for achieving exceptional levels of control, repeatability, and efficiency in countless applications.

New developments in optical encoder technology can potentially unleash even higher levels of performance and precision as technology continues its unstoppable forward motion. We can expect them to continue developing and spreading, spurring creativity and expanding the frontiers of motion control and automation technology.
