Understanding OM3 Multimode Fiber: All You Need to Know

What is OM3 Multimode Fiber?

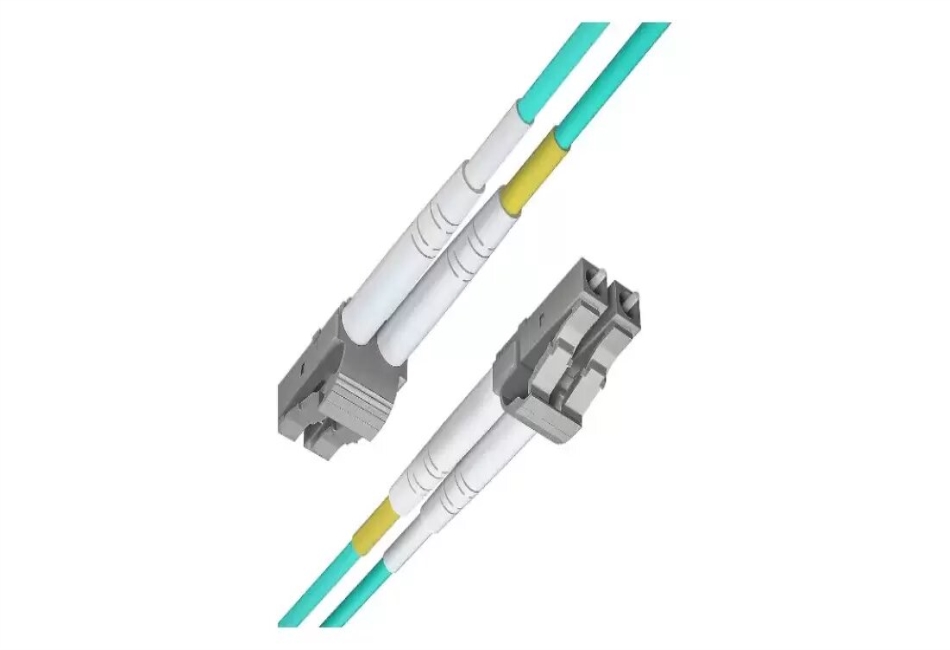

OM3 multimode fiber is a type of optical fiber specifically designed for high-speed data transmission over relatively short distances, typically within data centers and campus networks. This fiber classification adheres to the internationally recognized ISO/IEC 11801 standards and the TIA-568-C.3 specifications. OM3 fibers have a core diameter of 50 micrometers and are optimized for laser transmission, particularly for use with 850 nm VCSEL (Vertical-Cavity Surface-Emitting Laser) sources. These attributes enable OM3 multimode fiber to support 10 Gigabit Ethernet up to 300 meters and 40/100 Gigabit Ethernet up to 100 meters. This makes OM3 an excellent choice for businesses that require high bandwidth, low latency, and cost-effective network solutions.

View FiberMall for More Details

Overview of OM3 Fiber Specifications

OM3 multimode fiber exhibits several key specifications that make it suitable for modern high-performance networks. Key parameters include a core diameter of 50 micrometers, a cladding diameter of 125 micrometers, and a maximum attenuation of 3.5 dB/km at 850 nm wavelength. The effective modal bandwidth (EMB) is another critical specification, with OM3 supporting at least 2000 MHz*km at 850 nm, which results in reliable and high-speed data transmission. Additionally, OM3 fiber is color-coded aqua for easy identification within cabling infrastructure.

If you are looking for more information about OM3 go here right away

The Evolution from OM1 and OM2 to OM3

The development of OM3 fiber represents a significant advancement over its predecessors, OM1 and OM2. OM1 fibers have a core diameter of 62.5 micrometers and have been primarily used for lower-speed applications, supporting up to 1 Gigabit Ethernet over 275 meters. OM2 fibers, with a core diameter of 50 micrometers, provide enhanced performance over OM1 but are limited to 1 Gigabit Ethernet over 550 meters. OM3 fiber, by contrast, is optimized for laser transmission, supporting much higher data rates and longer distances for applications requiring 10, 40, and 100 Gigabit Ethernet. This progression has enabled network infrastructures to handle the ever-increasing demands for bandwidth and data speed.

Common Uses of OM3 Multimode Fiber Cable

OM3 multimode fiber is widely deployed in various scenarios due to its ability to support high bandwidth over shorter distances. It is predominantly used in data centers to connect servers, storage systems, and switches, facilitating efficient and rapid data transfer within the facility. Additionally, OM3 fiber is frequently employed in campus backbones where high-speed connectivity between buildings or departments is necessary. Industries such as telecommunications, healthcare, and finance also utilize OM3 fiber for their intranet and enterprise networks, ensuring robust and high-speed communication infrastructures.

Key Differences Between OM1, OM2, and OM3

Speed and Bandwidth Capabilities Comparing Cable Distances: OM1 vs OM2 vs OM3

When evaluating the speed and bandwidth capabilities of OM1, OM2, and OM3 multimode fibers, it is essential to understand their respective performance limitations and advantages:

  • OM1 Fiber:
  • Supports up to 1 Gigabit Ethernet over a distance of 275 meters.
  • Limited performance characteristics suitable for lower-speed applications.
  • OM2 Fiber:
  • Enhances performance over OM1, supporting up to 1 Gigabit Ethernet over 550 meters.
  • Capable of handling up to 10 Gigabit Ethernet over shorter distances (82 meters).
  • OM3 Fiber:
  • Significantly optimized for laser-based transmission.
  • Supports 10 Gigabit Ethernet over 300 meters, 40 and 100 Gigabit Ethernet over 100 meters.
  • Highest bandwidth capabilities among the three, making it ideal for modern data-intensive applications.

Color Coding and Identification

For ease of identification and to avoid installation errors, OM1, OM2, and OM3 fibers are color-coded as follows:

  • OM1 Fiber: Orange jacket.
  • OM2 Fiber: Orange jacket.
  • OM3 Fiber: Aqua jacket.

These color codes ensure quick visual differentiation among the fiber types, facilitating effective cable management and deployment in complex networking environments.

Applications of OM3 Fiber in Modern Data Centers

Deploying OM3 for 10 Gigabit Ethernet

OM3 fiber is specifically designed for high-speed, short-distance links, making it ideal for deploying 10 Gigabit Ethernet (10 GbE) in data centers. The laser-optimized multimode fiber facilitates efficient and reliable data transmission over distances up to 300 meters, significantly surpassing the performance of OM1 and OM2 fibers. Utilizing OM3 cables in 10 GbE networks helps minimize latency and ensures rapid data transfer rates, which are crucial for the seamless operation of data-intensive applications.

OM3 Fiber in Short-Distance High-Speed Links

The superior bandwidth and enhanced signal integrity of OM3 fiber make it well-suited for short-distance high-speed links within enterprise environments. OM3 fiber provides a practical solution for connecting server rooms, storage networks, and core switches without signal degradation. This high-performance capability is especially beneficial in densely populated network environments where the volume of data traffic demands robust and efficient connectivity solutions.

Why Data Centers Prefer OM3 for High-Bandwidth Applications

Data centers increasingly prefer OM3 fiber for high-bandwidth applications due to its exceptional performance characteristics. The OM3 standard allows for the support of higher-speed protocols such as 40 and 100 Gigabit Ethernet over distances up to 100 meters, catering to the growing demand for faster data rates and increased network capacities. Additionally, OM3 fiber’s optimizations for laser-based transmission provide superior performance in structured cabling systems, ensuring that modern data centers can scale effectively and sustain their high operational demands. This preference for OM3 fiber underscores its role as a cornerstone in the development of scalable, future-proof network infrastructures.

OM3 vs OM4: Key Differences and Benefits

Comparative Performance of OM3 and OM4

When comparing OM3 and OM4 fibers, the primary difference lies in their performance capabilities, especially over longer distances. OM4 fiber, developed as an enhancement of OM3, offers extended reach and improved performance, which is achieved through tighter tolerances and more sophisticated manufacturing processes. While OM3 can support 40 Gigabit Ethernet up to 100 meters, OM4 extends this range to 150 meters. This makes OM4 particularly advantageous in environments where greater distances need to be spanned without compromising data integrity or speed. Both fibers support 100 Gigabit Ethernet, but OM4’s enhanced bandwidth and reduced modal dispersion provide a more reliable solution for larger, more demanding network architectures.

Cost Comparison: OM3 vs OM4

Cost is a significant consideration for enterprises when choosing between OM3 and OM4 fibers. Generally, OM4 fiber optics are more expensive than OM3, reflecting their advanced performance and manufacturing requirements. The higher cost of OM4 fiber must be weighed against its longer reach and reduced signal loss, which can offer cost savings in other areas, such as reduced need for intermediate equipment or more straightforward network designs. For many enterprises, the initial higher investment in OM4 fiber can lead to lower total cost of ownership when considering the network’s operational lifespan and maintenance requirements.

Choosing Between OM3 and OM4 for Future-Proofing

Selecting between OM3 and OM4 for future-proofing a network is largely dependent on the projected growth and specific needs of the infrastructure. OM3 fiber remains a robust choice for many current high-speed applications, particularly in environments where distances do not exceed OM3’s effective range. However, for organizations anticipating significant data growth, the need for higher bandwidth, or planning for network extensions, OM4 fiber provides a more scalable solution. Its ability to support longer distances and higher speeds without additional equipment makes it a forward-looking investment, ensuring that network infrastructures remain capable of meeting future demands with minimal upgrades. Therefore, assessing current network loads and anticipated growth is critical in making an informed decision between these two options.

How to Properly Install and Maintain OM3 Fiber

Ensuring Optimal Performance with Proper OM3 Maintenance

Proper installation and maintenance of OM3 fiber optics are crucial to achieving optimal performance and longevity. To start, it is essential to maintain a clean and controlled environment during installation to prevent contaminants from affecting the fibers. Utilize appropriate fiber cleaning tools and practices to ensure all connectors and splices are free of dust and debris. Additionally, ensure that the bend radius of the fiber optic cables adheres to the manufacturer’s specifications to prevent micro-bends and macro-bends, which can cause signal attenuation. Carefully route the cables to avoid unnecessary stress and potential damage, and use cable management solutions to organize and support the cables securely.

Regular inspection and testing are vital for maintaining the integrity and performance of OM3 fiber. By employing optical time-domain reflectometer (OTDR) testing and visual fault locators, technicians can detect issues such as signal loss, splicing errors, or connector faults. Implementing a routine maintenance schedule that includes cleaning connectors, checking for physical damage, and verifying network performance will help in minimizing downtime and ensuring reliable operation.

Common Mistakes to Avoid During Installation

Several common mistakes can undermine the effectiveness of OM3 fiber installations. One of the most frequent errors is improper handling of the cables, such as excessive pulling or bending, which can cause damage to the fibers and result in increased signal loss. Neglecting to clean connectors before connecting them can introduce contaminants that degrade performance. Another critical mistake is failing to adhere to the recommended bend radius, leading to fiber breaks or bending losses. Inadequate labeling and documentation during installation can also create challenges for future troubleshooting and maintenance.

To avoid these pitfalls, ensure that all personnel involved in the installation are adequately trained and familiar with best practices for fiber optic handling and installation. By taking the necessary precautions and following established guidelines, organizations can maximize the performance and longevity of their OM3 fiber networks.

FAQs About OM3 Multimode Fiber

What Makes OM3 Multimode Fiber Different from Single-Mode Fiber?

OM3 multimode fiber is specifically engineered to support high-speed data transmission over shorter distances, making it ideal for use in data centers and enterprise networks. Unlike single-mode fiber, which uses a smaller core diameter to allow only one mode of light to propagate, OM3 fiber has a larger core diameter that permits multiple modes of light. This results in a higher capacity for data transmission over shorter distances, but it is susceptible to greater modal dispersion over longer distances. Single-mode fiber, on the other hand, is suitable for long-distance communications, offering significantly lower attenuation and higher bandwidth across vast distances, such as those required for telecommunication backbone networks.

Can I Use OM3 Fiber with Older Network Equipment?

Yes, OM3 fiber is designed to be backward compatible with older network equipment. It uses the same connectors and can support lower data rates typically used in legacy systems. However, to fully leverage the high-performance capabilities of OM3 fiber, it is recommended to use network equipment that supports higher data rates, such as 10G, 40G, or 100G Ethernet. Utilizing older equipment may limit the performance benefits that OM3 fiber can offer, but it is still a viable option for ensuring compatibility and maintaining existing infrastructure.

How Does OM3 Fiber Compare to OM5?

OM3 fiber and OM5 fiber both serve the purpose of facilitating high-speed data transmission in optical networks, but there are key differences between the two. OM5 fiber, often referred to as wideband multimode fiber (WBMMF), is an advanced version of OM3 that supports a broader range of wavelengths from 850 nm to 950 nm. This enhanced capability allows for wavelength-division multiplexing (WDM), which enables multiple data streams to travel simultaneously on different wavelengths. Consequently, OM5 fiber can achieve higher data rates and longer reach compared to OM3 fiber. While OM3 is sufficient for many existing high-speed applications, OM5 provides a future-proof solution for networks anticipating higher data demands and more complex applications.
